Driven by diesel power and operated via remote video remote control, the robot is equipped with a humanoid three-section arm working mechanism and a quick-change system. It can be quickly equipped with hydraulic hammers, hydraulic shears, hydraulic saws, grab buckets, etc., and can complete demolition, shearing, grasping, handling and other tasks within a large working radius. It is suitable for dangerous places such as toxic, hazardous chemical, explosive, easily collapsible, and nuclear-contaminated areas. At the same time, the robot is equipped with an 80 L/s large-flow fire water cannon, has strong hose towing ability, and performs well in quickly extinguishing large-scale fires.
Item No :
HCR330CWeight :
4460 kgSpecifications :
3856 mm*1500 mm*1201 mmPower :
44.4 kWClimbing inclination :
30°Transport Package :
Steel bracket wooden casesProduct features:
| Performance | |
| Machine weight | 4460 kg |
| Transport speed | 1.8 km/h, 3.6 km/h |
| Slewing speed | 16 s/360° |
| Climbing inclination, max. | 30° |
| Track width | 300 mm |
| Hydraulic system | |
| Pump type | Load-sensitive axial piston variable displacement pump |
| Pump flow | 0~94 L/min |
| System pressure | 23 MPa |
| Hydraulic oil tank capacity | 121 L |
| Dynamical System | |
| Drive Type/Model | Diesel Engine Driven |
| Power | 44.4 kW |
| Control system | |
| Control type | Portable remote control |
| Control mode | Radio/wired (20 m) |
| Range | ≥1000 m(can be customized) |
| Communication | CAN bus-based digital wired bidirectional communication |

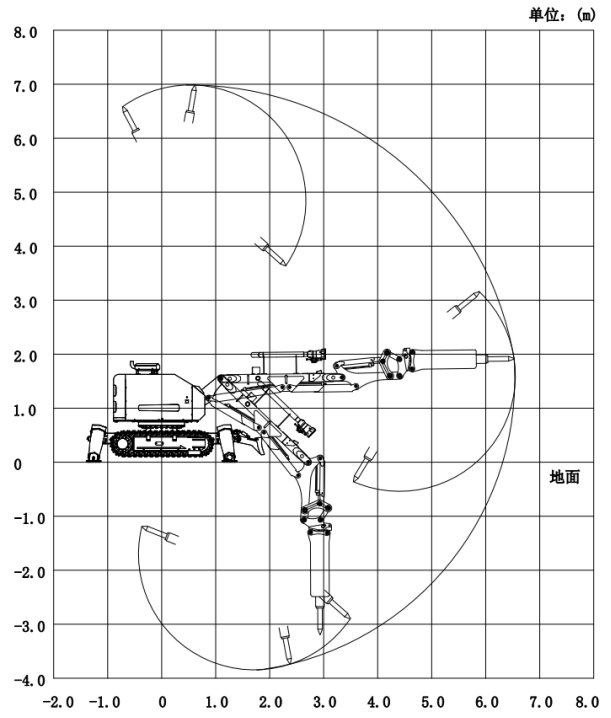

| Workspace Level | |
| Working height, max. | 6983 mm |
| Working depth, max. | 3190 mm |
| Working radius, max. | 6526 mm |
