RXR-M200D-AHHC Firefighting Robot

RXR-M200D-AHHC Firefighting Robot

It is diesel engine and equipped with an ATV hydraulic tracked chassis, which makes it maneuverable and flexible. It can turn in place, climb slopes, and has strong off-road capabilities. The imported fire cannon with a large flow rate of 150L/s it is equipped with has a long firing range and can effectively meet the needs of fighting large-scale fires.The fire-fighting robot can effectively replace trailer guns and mobile guns. It can remotely control the fire cannon to the required position using its own power, and effectively substitute firefighters to approach the fire source and dangerous areas for reconnaissance, fire fighting and other operations. Operators can carry out fire-fighting operations at a distance outside the fire source, avoiding unnecessary casualties.

  • Item No :

    RXR-M200D-AHHC Firefighting Robot
  • Weight :

    1900 kg
  • Specifications :

    2310 mm*1460 mm*1860 mm
  • Climbing inclination :

    40°
  • Water cannon range :

    110 m
  • Tractive force :

    15 kN
  • Transport Package :

    Steel bracket wooden cases

Equipped for water or foam firefighting, the RXR-M200D-AHHC handles a range of emergencies too risky for people. An intelligent solution ready around-the-clock, it streamlines fire department operations where conditions prevent access by firefighters. Performing difficult work in place of responders, theRXR-M200D-AHHC optimizes fire suppression in complicated environments. Confronting situations beyond human endurance, this robot saves lives by overcoming obstacles to quell blazes before they spread out of control.

With mobility, heat/flame resistance and adjustable water/foam cannons, the RXR-M200D-AHHC robot tackles unsafe areas efficiently. This machine enhances rescue with remote, automated skills to open paths for evacuation and douse fires faster than human crews alone.



Features:

Strong power:Powered by an imported engine; All-terrain tracked drive. It can connect four high-pressure water hoses and drag them to the designated position.

Smooth driving:It adopts stepless speed change with two gears of fast and slow, enabling it to travel quickly and also climb slopes and cross obstacles at a low speed.

Self protection function:The robot body is equipped with a fully enclosed automatic water mist spraying protection system. The spraying nozzles form a water mist protection circle, which can effectively prevent the thermal radiation from the surrounding environment from entering and cool down the robot at the same time. It will be automatically turned on during fire fighting operations.

Strong passing ability:It adopts a hydraulic tracked walking chassis, which is maneuverable and flexible. It can turn in place, has strong climbing ability, can cross obstacles, has strong off-road capabilities, and is adaptable to complex terrains.

Easy to operate:The lightweight wireless remote control has a remote control distance of up to 1000 meters and can remotely control all actions of the machine.
Smooth braking :The automatic hydraulic braking device provides stable braking and reliable parking on slopes.





Widely applied in:

  • For highway (railway) tunnels, subway stations, underground facilities and freight yards
  • Fires in large-span and large-space places, petrochemical oil depots and refineries
  • Reconnaissance and data collection of dangerous fire targets, reconnaissance, attack and cover of targets, etc.
  • Firefighting in situations where large fire trucks and personnel are difficult to approach and rescue and disaster relief in dangerous situations
  • Large-scale toxic gas and smoke accidents and dangerous fires
  • Fires in industrial plants and civil buildings



An essential apparatus for emergency services, the RXR-M200D-AHHC's autonomous abilities fill critical roles in the most dangerous operations. Its powerful, two-wheel-drive performance improves crisis response, confronting threats with tools built to overcome perilous challenges automatically.

RXR-M200D-AHHC Firefighting Robot leads emergency management into safer strategies. Ready for rapid deployment 24 hours a day, this intelligent solution drives upgrades that optimize results, transforming response times in hazardous areas. With advanced abilities and controls, it marks the cutting edge in fire department technology.



Performance
Machine weight 1900 kg
Transport speed 0-7.2 km/h
Climbing inclination, max 40°
Ground clearance 200 mm
Obstacle climbing height 200 mm
Tilting stability angle 30 º
Video transmission distance 1000 m
Dynamical System
Tractive force 15 kN
Fire extinguishing system
Water cannon flow rate, max. 150 L/s
Water cannon range 110.m
Working pressure 1 Mpa
Water cannon depression angle 30 º
Water cannon elevation angle 90 º
Water cannon rotation angle ±120 º



    Tags :

Leave a message
Thank you for visiting Hitech. For further information about our products and business, fill out and submit the form, we'll get back to you as soon as possible.
submit
Our Cases

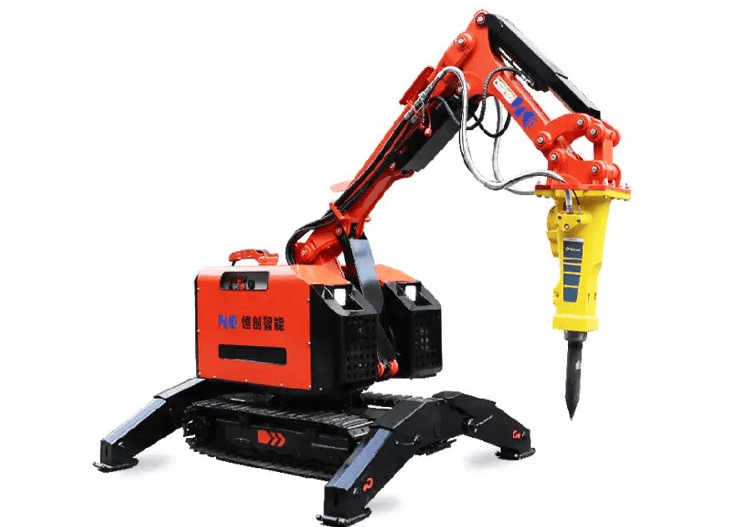

Demolition robots Application In The Security And Rescue
